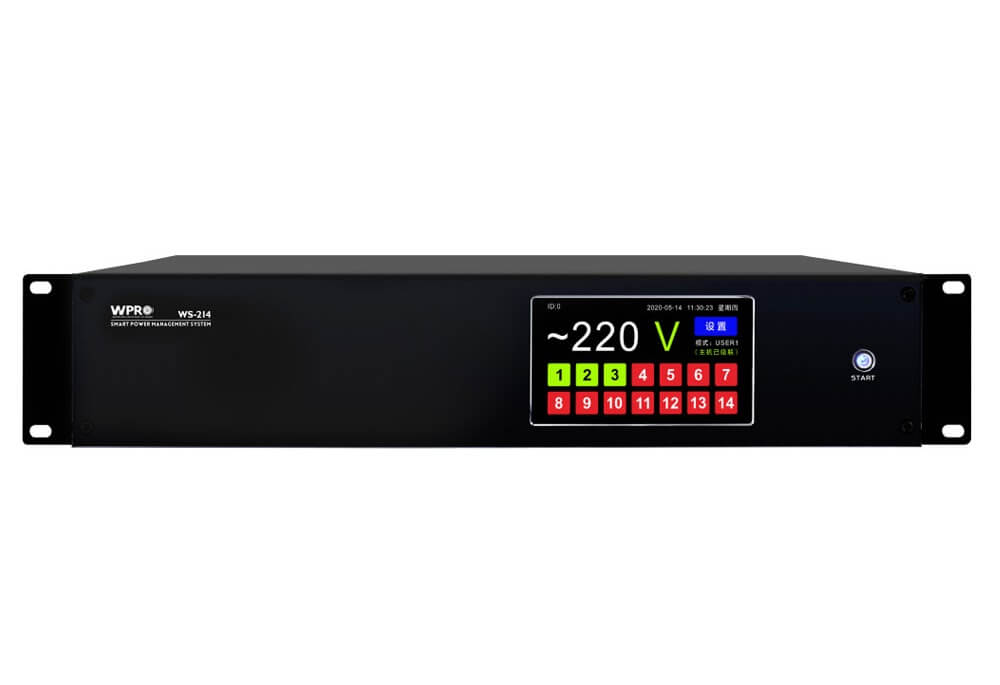

WS-214

Features

• 5-inch color LCD smart touch display: Real-time voltage, date/time, channel status;

• 14-channel switch output: Adjustable activation/deactivation delay; 8-cycle scheduled on/off per channel;

• Built-in clock chip: Scheduled auto power-on/off (date/time-based, no manual operation);

• Wireless control (computer/tablet/phone) & network control: Unrestricted on-site operation;

• Panel Lock: Prevents misoperation;

• Multi-device cascade sequence control (auto detection);

• 232 & 485 ports: Compatible with external central control devices;

• Supports cloud service connection: Remote control & device configuration;

• Switch scene data (save/recall): Easy scene management;

• Undervoltage/overvoltage detection + alarm; 17-ch independent filter;

• 10 external triggers: Connect to central control for power-on/off.

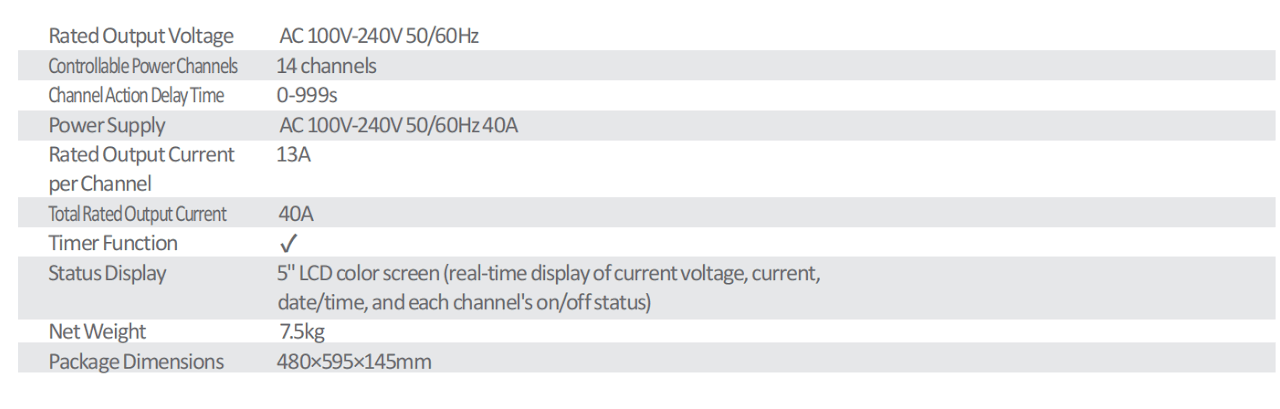

Technical Specifications
