WS-108C

Features

• 2-inch color LCD smart display window: Real-time display of current voltage, date/time, and channel on/off status;

• Built-in clock chip: Supports scheduled automatic power-on/off (set by date/time) without manual operation;

• 8-channel switch output: Delay time for each channel’s activation and deactivation is freely adjustable;

• Panel Lock function: Prevents misoperation;

• Multi-device cascade sequence control (auto cascade detection);

• RS232 port: PC configuration/central control;

• RS485 port: Host-device cascade/central control;

• Network port (TCP/IP): PC configuration/central control;

• External short-circuit trigger;

• Supports control via phone, tablet & PC;

• Built-in ID setting/detection per device (supports remote centralized control);

• 8 sets of device on/off scene data (save/recall, easy scene management);

• Undervoltage/overvoltage detection & alarm;

• Built-in filter function.

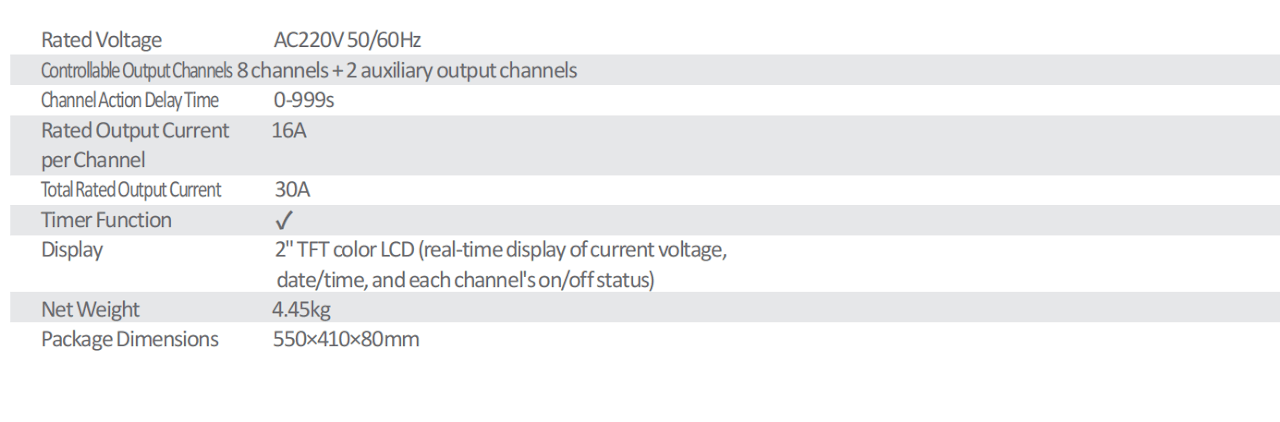

Technical Specifications
