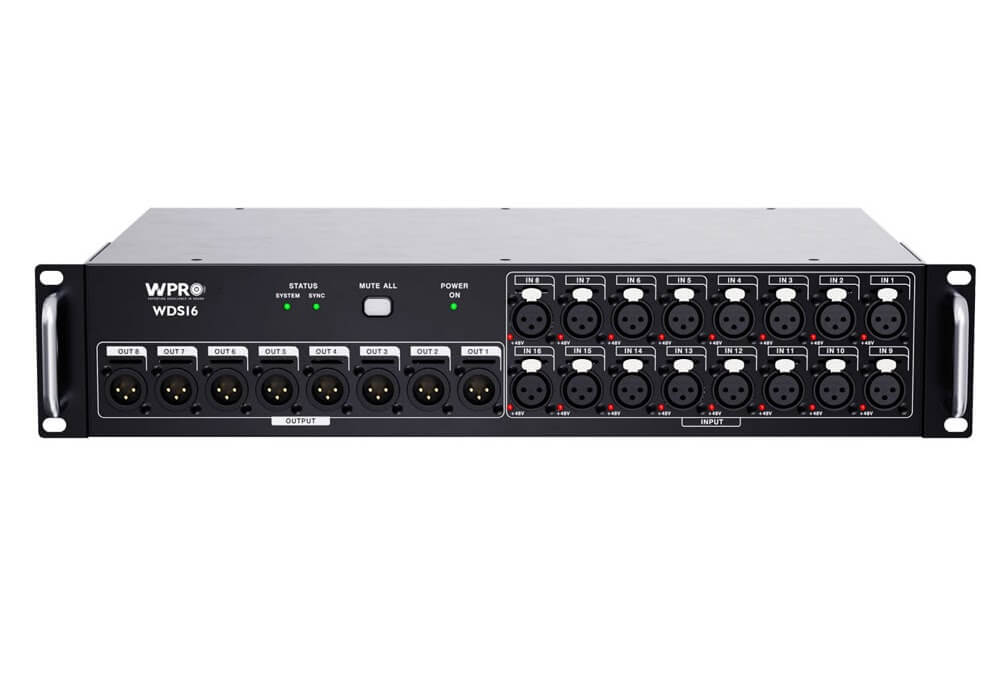

WDS16

Features

• 3-position switch + 3 green LEDs: Assign a unique ID (1-3) to the interface box；

• PT40 switching power module: AC100-240V (50/60Hz); Front-panel power switch & indicator included；

• Compatibility: Works with HM WD16/24/32 PRO mixers, communicating via DANTE protocol；

• Supports cross-platform APP control; operates the interface box via the main mixer；

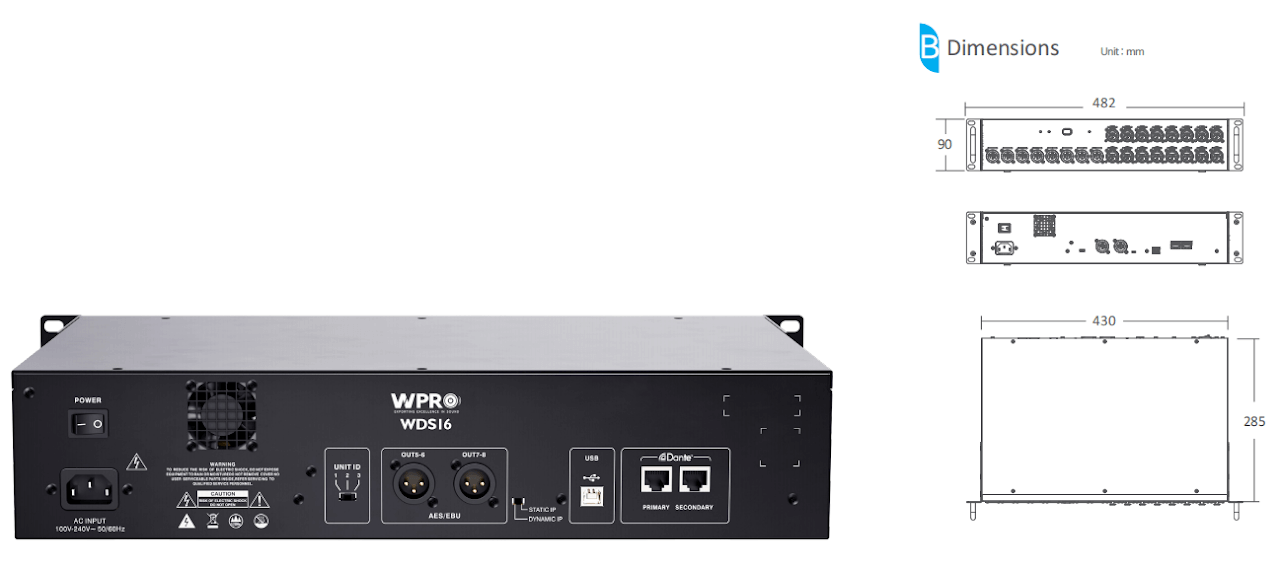

• Standard 2U interface, supporting rack-mounted installation；

• Constructed with high-quality components to ensure long service life；

• Equipped with 16-channel balanced analog input ports and 8-channel balanced analog output ports；

• Features 4 AES/EBU output channels；

• 16-channel XLR input channels；

• Independent 48V indicator light for each channel；

• Mute button.

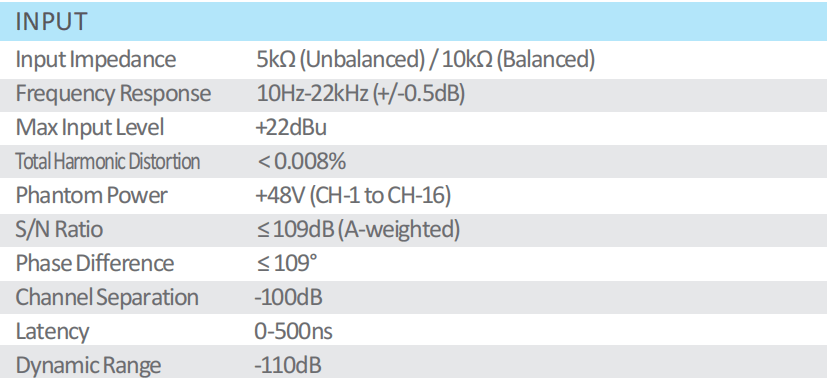

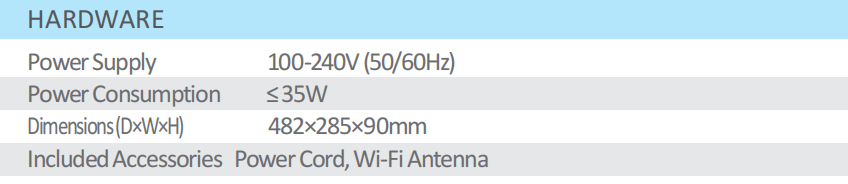

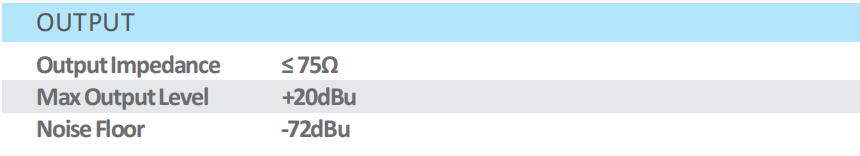

Technical Specifications
