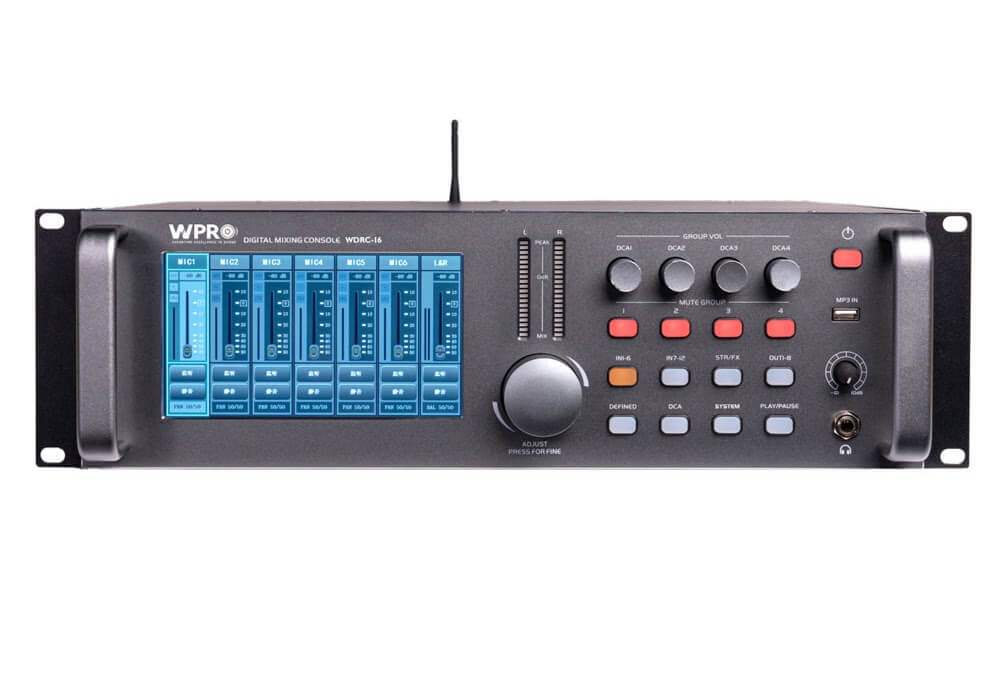

WDRC-16

Features

• 7 mix buses, including 6 AUX buses and 1 MAIN bus;

• 4 DCA level groups and 4 mute group;

• 12 mono microphone channels;

• 2 stereo channels;

• 1 SPDIF input/output channel;

• 1 AES/EBU output channel;

• 8 customizable XLR output ports;

• 2 FX effect send buses;

• 1 31-band GEQ;

• 1 headphone monitoring output port;

• Supports USB flash drive/Bluetooth music playback;

• 7-inch 1024×600 resolution touchscreen;

• Wireless control via Android tablet APP;

• Supports RS232 central control;

• 32 groups of scene save and recall.

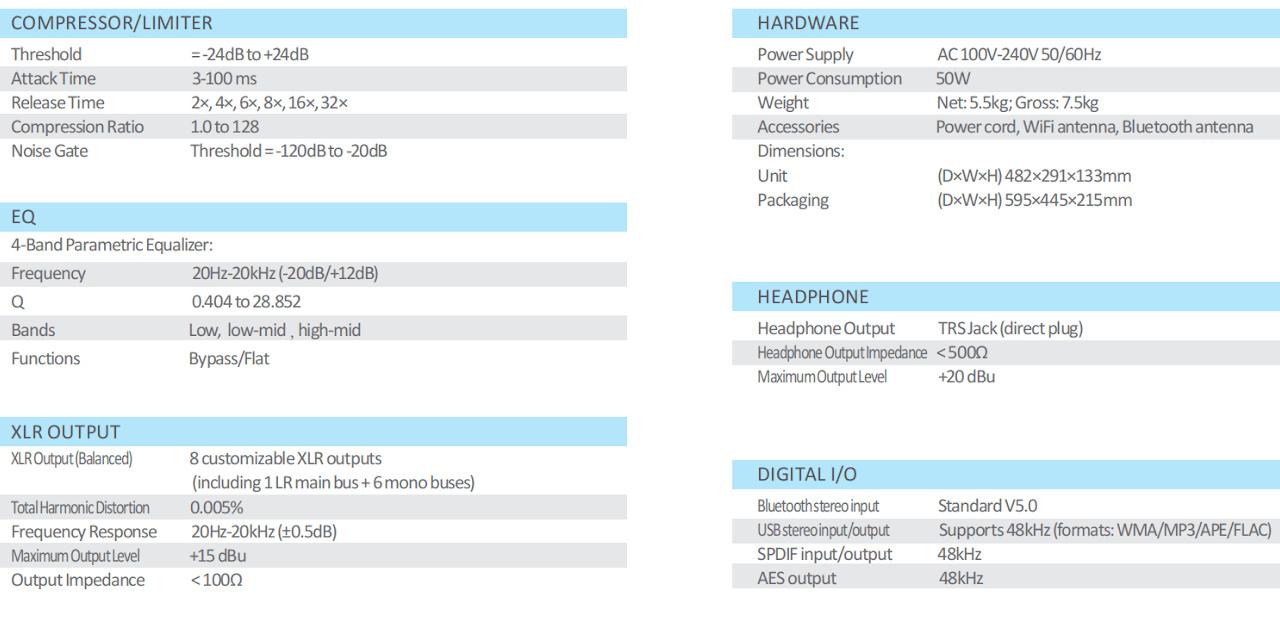

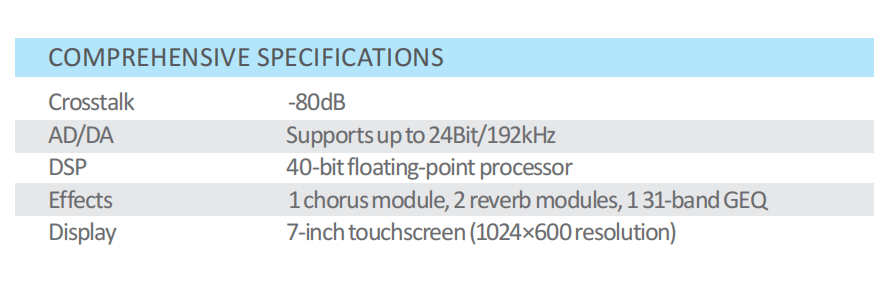

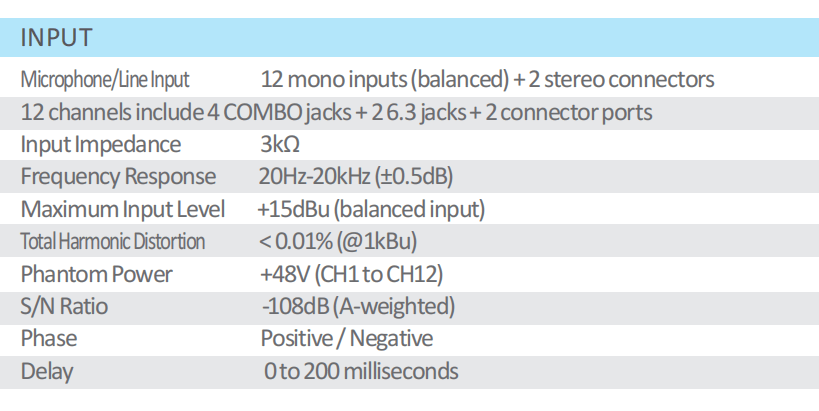

Technical Specifications
