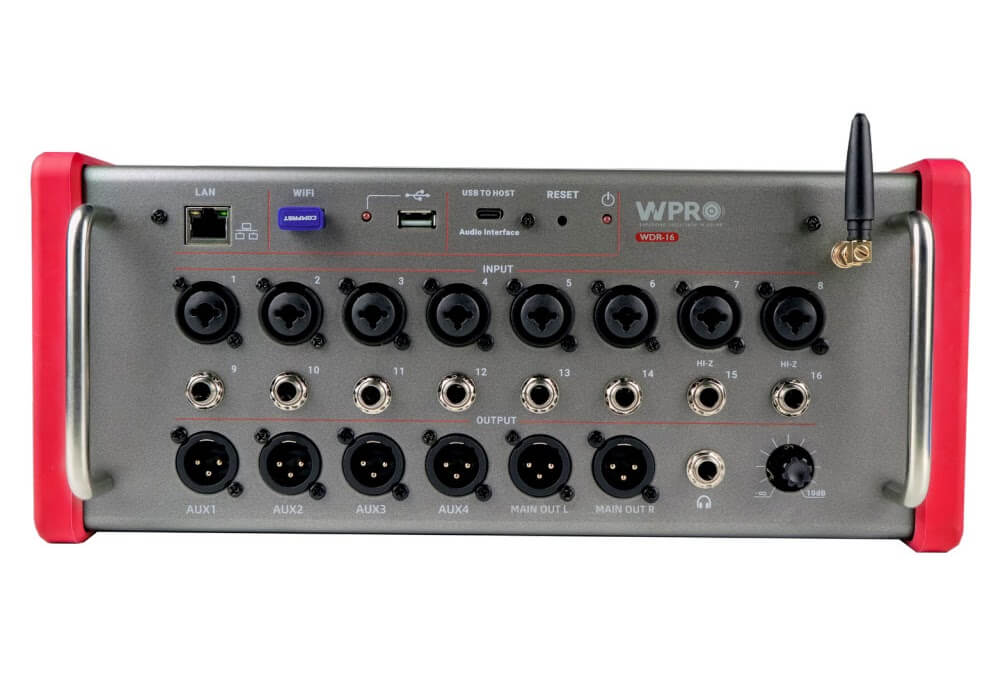

WDR-16

Features

• 20 physical signal inputs: 8 balanced analog (XLR combo, mic preamps), 8 balanced analog (TRS 6.5), 1 stereo USB playback, 1 stereo Bluetooth/Type-C sound card;

• 10 signal outputs: 6 XLR analog, 1 stereo TRS headphone monitor, 1 USB recording;

• 16 mono + 3 stereo input buses: User-configurable physical input-bus configuration;

• 12 mix buses: 6 mono AUX, 2 effects, 2 mono MTRX matrix, 1 stereo main output buses;

• Input channels: 48V phantom power switch (IN1-8), analog gain adjustment. (IN1-8);

• Digital Gain, phase adjustment, 0-1000ms delay, pan/balance control, level adjustment, channel label customization, 4-band parametric EQ (selectable modes: parametric, high-shelf, low-shelf, high-pass filter), high-pass filter, noise gate, compressor;

• Output channels: 0-1000ms delay, pan/balance control, level adjustment, channel label customization, 4-band parametric EQ (selectable modes: parametric, high-shelf, low-shelf), high-pass filter, low-pass filter, 31-band GEQ, compressor;

• 2 effects buses: 8 selectable effects (echo, reverb, overdrive, pitch shift, distortion, flanger, chorus, vocal doubling);

• Supports Bluetooth/2×2 Type-C sound card & USB music playback, scene import/export, and device updates;

• Input channels: Gain finder for optimal gain;

• 1 TRS headphone monitoring output;

• LAN/USB WiFi linkage + web control;

• 100 scene presets (save/recall).

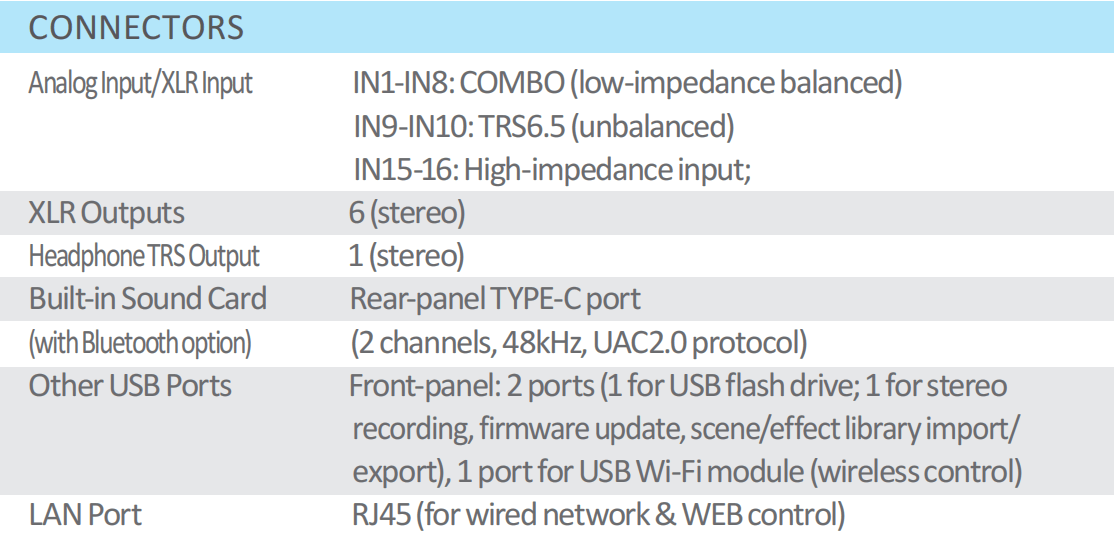

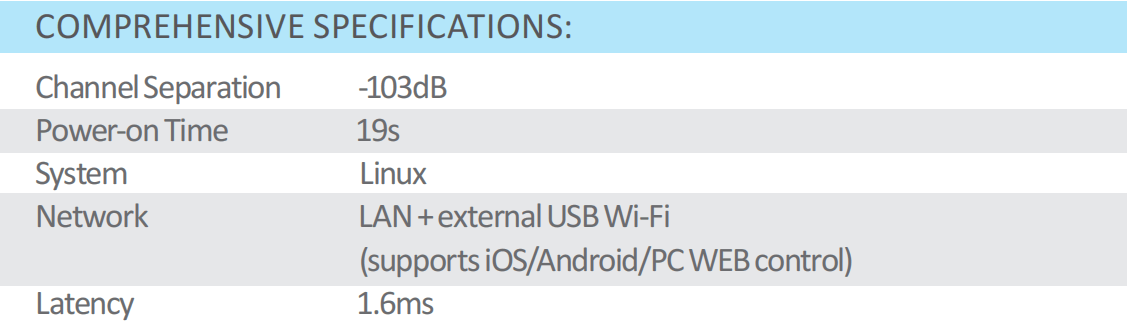

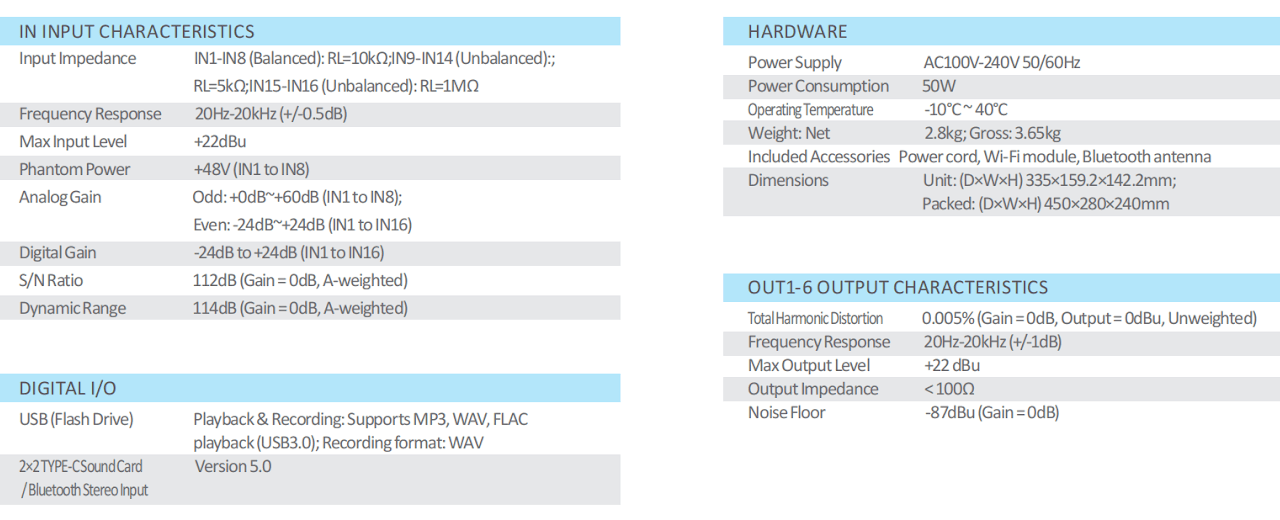

Technical Specifications
