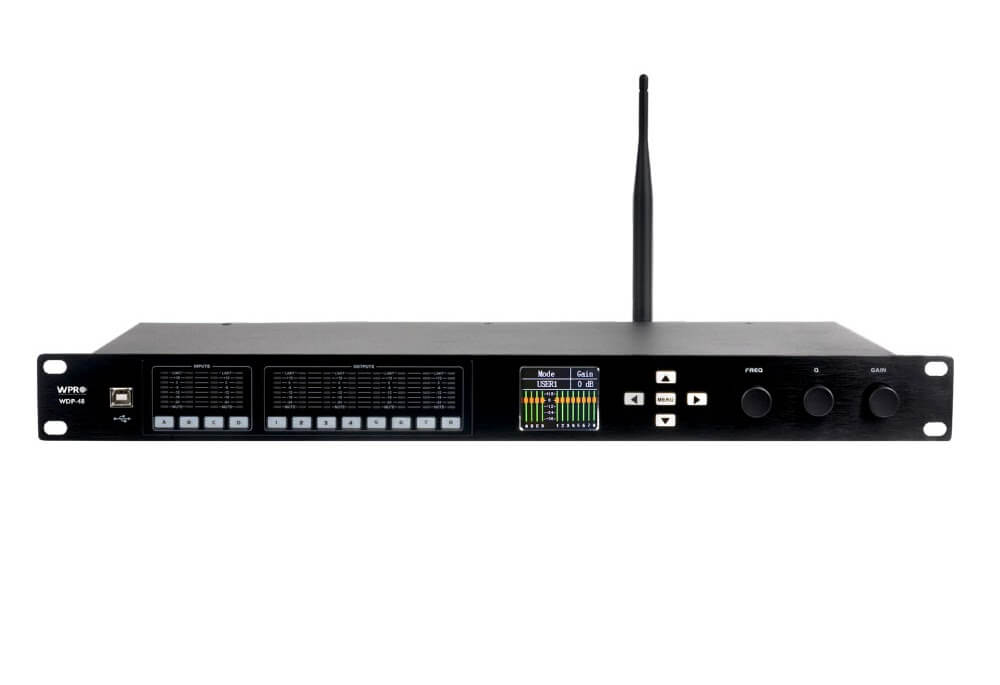

WDP-48

Features

• Adjustable slope for variable/low-pass IIR filters: Butterworth: 6dB/12dB/18dB/24dB/36dB/48dB per octave (supports LinkwitzRiley configuration)

• Bessel: 12dB/18dB/24dB/36dB/48dB per octave 2nd, High-Shelving; 2nd,

• LowPass; 2nd, HighPass; 2nd) Input/output channel high/lowpass filter parameters can be adjusted independently to achieve asymmetric crossover;

• Each input/output includes gain, delay, phase control and mute settings:Max delay: 1000.0ms (step: 0.01ms); supports units: ms, meters (m), feet (ft);10 preset delay values: 0, 10.1, 1×1, 1×10, 5 steps;

• Each input/output channel is equipped with 10-band PEQ (PEQ, LowShelving optional)；Each output has RMS compression (adjustment range: -24dB~12dB, step: 0.1);

• Input/output channel high/low-pass filter parameters can be adjusted independently for asymmetric crossover;

• Each output has RMS compression (adjustment range: -24dB to 12dB, step: 0.1);

• Built-in signal generator: supports pink noise/white noise/sine wave (adjustable signal level);

• 96kHz sampling rate, 32-bit 400MHz DSP processor, 24-bit A/D & D/A conversion;

• Supports USB, LAN, RS485, WIFI connection to computer client;

• RS485 port supports third-party central control;

• Up to 32 devices can be cascaded via RS485 port;

• Stores up to 24 user programs;

• Input channels support gate adjustment (range: -120~-20dB optional)；

• Supports channel copy & paste; allows renaming encoder I/O channel names.

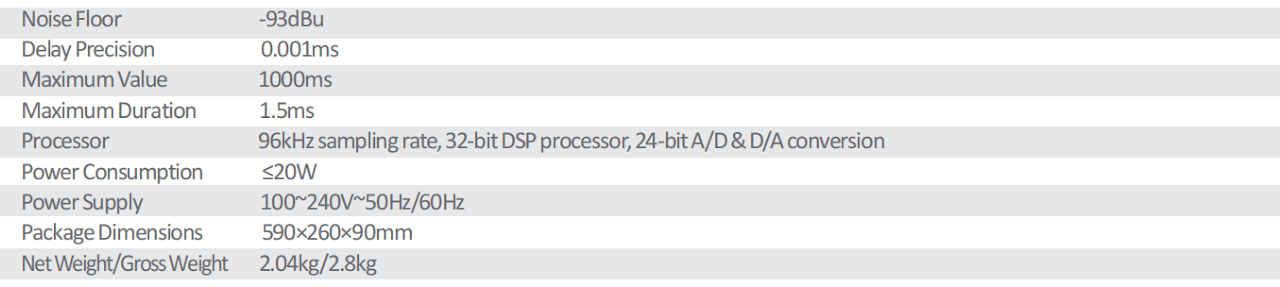

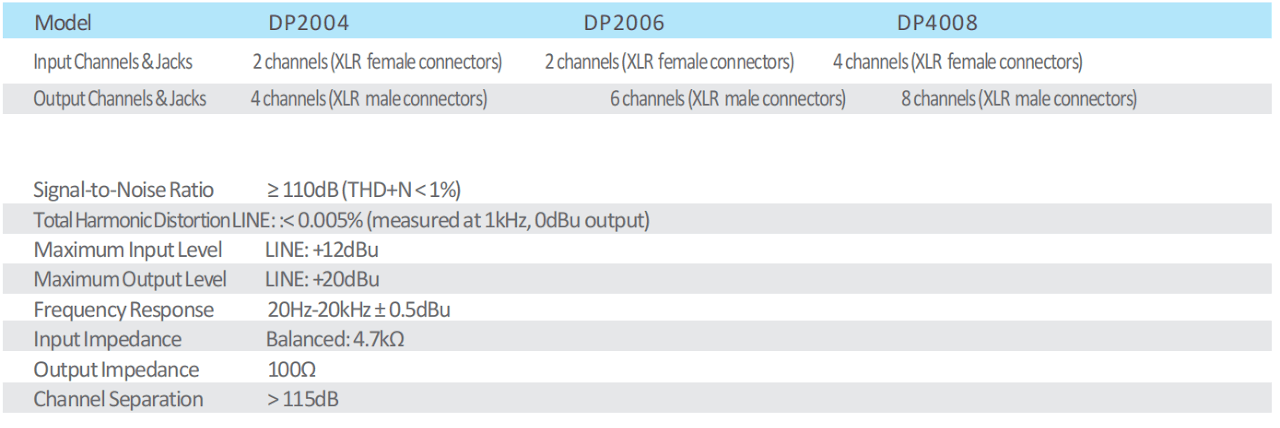

Technical Specifications
