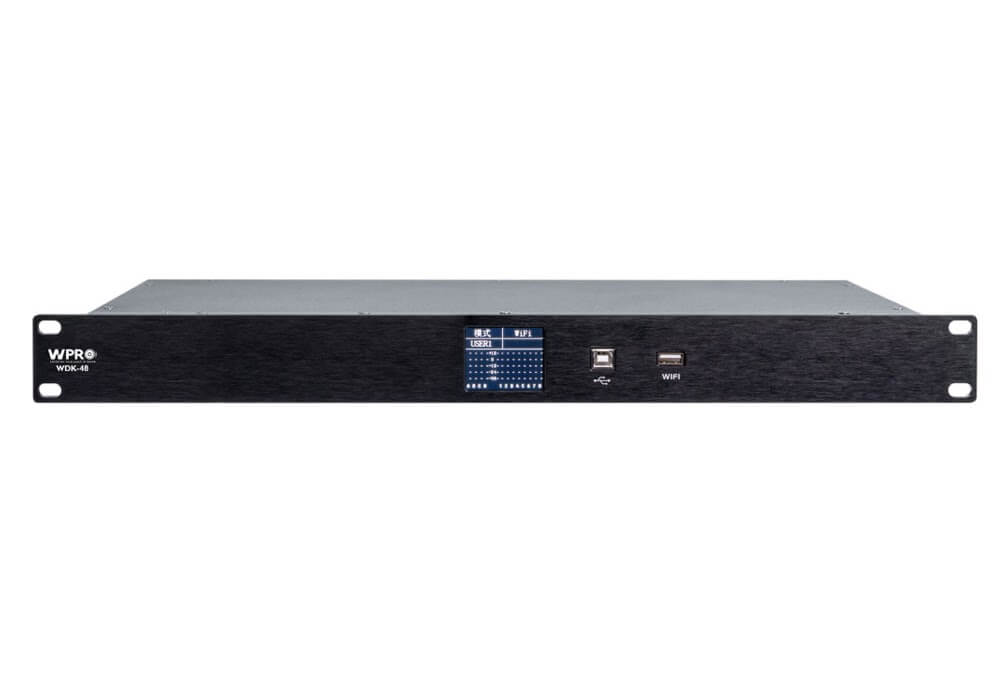

WDK-48

Features

• Adjustable slope for variable high/low-pass IIR filters:Bessel: 12dB/18dB/24dB/36dB/48dB per octave; (supports Linkwitz-Riley configuration) Butterworth: 6dB/12dB/18dB/24dB/36dB/48dB per octave;

• Each input/output includes gain, delay, phase control & mute:Max delay: 1000ms; units: ms/m/ft; steps:×0.001/×0.01/×0.1/×1/×10;

• 10-band PEQ per I/O channel (options: PEQ, LowShelving 2nd, HighShelving 2nd, LowPass 2nd, HighPass 2nd);

• Independent adjustment for I/O high/low-pass filter parameters (supports asymmetric crossover);

• RMS compression per I/O channel: Range -24dB~12dB, step 0.1;

• Built-in signal generator: Supports pink/white noise, sine wave; adjustable signal level;

• 96kHz sampling rate, 32-bit 400MHz DSP processor, 24-bit A/D & D/A conversion;

• Supports USB, LAN, RS485 for computer client connection;

• RS485 port supports third-party central control;

• Up to 32 devices can be cascaded via RS485;

• Stores 24 user programs;

• Input channels support gate adjustment (range: -120~-20dB optional);

• Supports channel copy/link; allows renaming of each I/O channel.

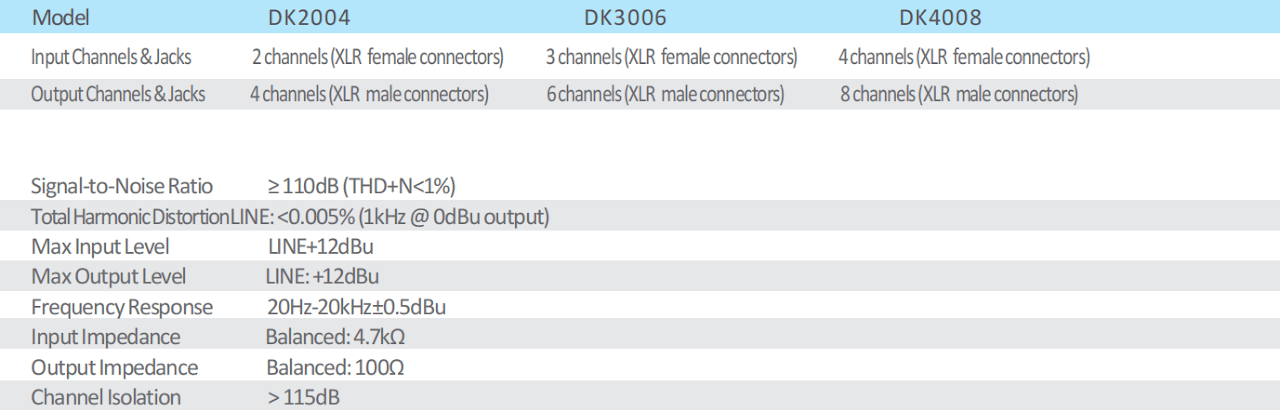

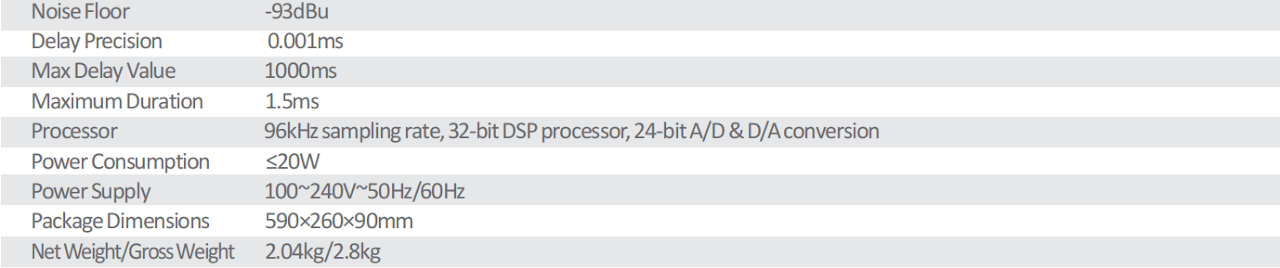

Technical Specifications
