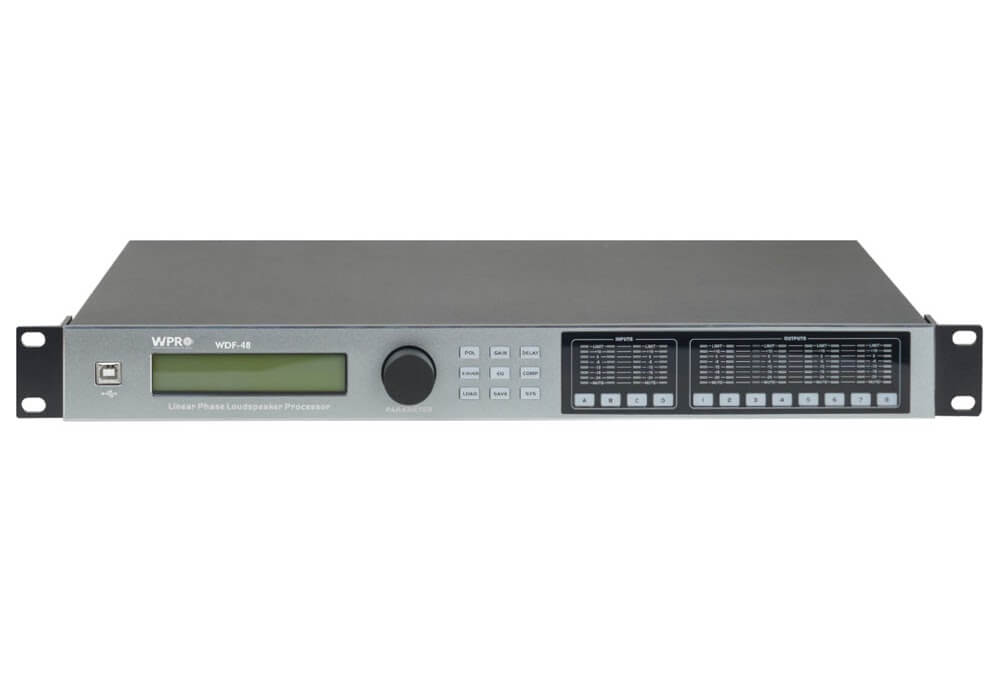

WDF-48

Features

• Variable IIR Filters: Adjustableslope(Butterworth: 6/12/18/24/36/48dB/oct, supports Linkwitz-Riley; Bessel: 12/18/24/36/48dB/oct);

• EQ: 16-band input EQ + 8-band output EQ (options: PEQ, LowShelving 2nd, HighShelving 2nd, LowPass 2nd, HighPass 2nd, Notch, AllPass 1st, AllPass 2nd);

• I/O Controls: Gain/delay/phase/mute per channel (max 1000ms delay; units: ms/m/ft; steps: ×0.001/×0.01/×0.1/×1/×10);

• Standalone Operation: Panel buttons + encoder for settings (no PC needed; simple & intuitive);

• SYSTEM button: Panel lock (password-protected, anti-unauthorized operation);

• Displays: 2×24 backlit LCD (settings); 8-segment LED (I/O level, mute/enable);

• Specs: 96kHz sampling, 32-bit 400MHz DSP, 24-bit A/D/D/A;

• Built-in signal generator: Pink/white noise/sine wave (adjustable level);

• Filters: Independent high/low-pass (asymmetric crossover);

• USB/LAN/RS485 for computer connection;

• RS485: Third-party central control support;

• RS485 cascading (up to 32 devices);

• 24 user programs (device/PC software storage);

• External FIR tool file import;

• I/O channel route matrix;

• Input gate adjustment (-120~-20dB).

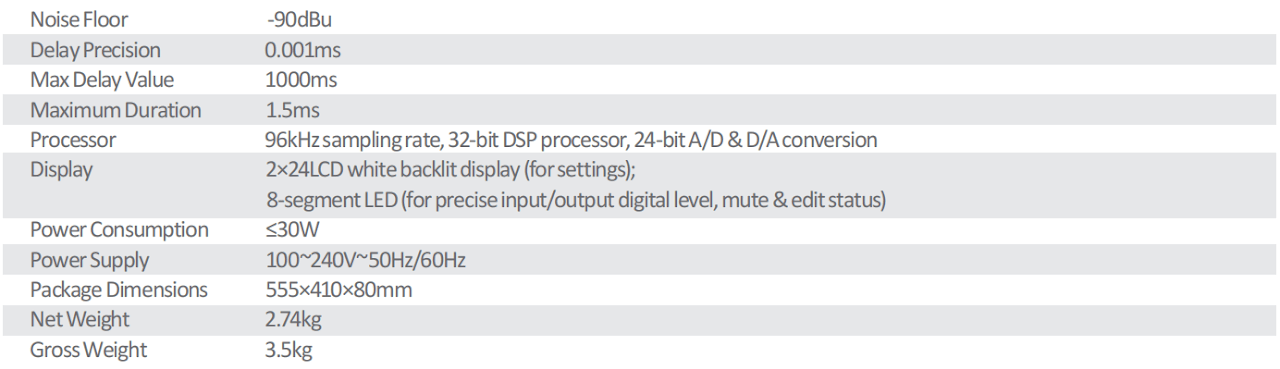

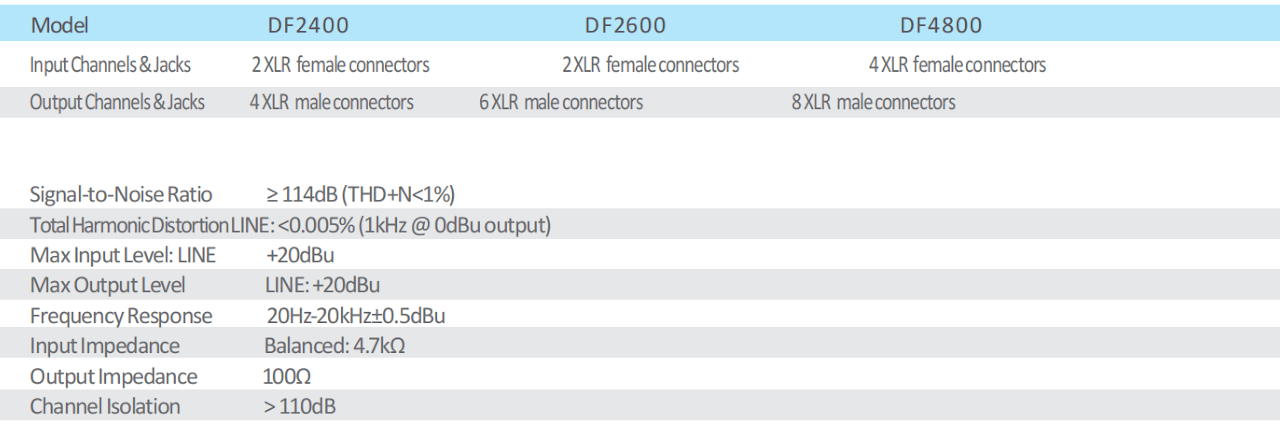

Technical Specifications
