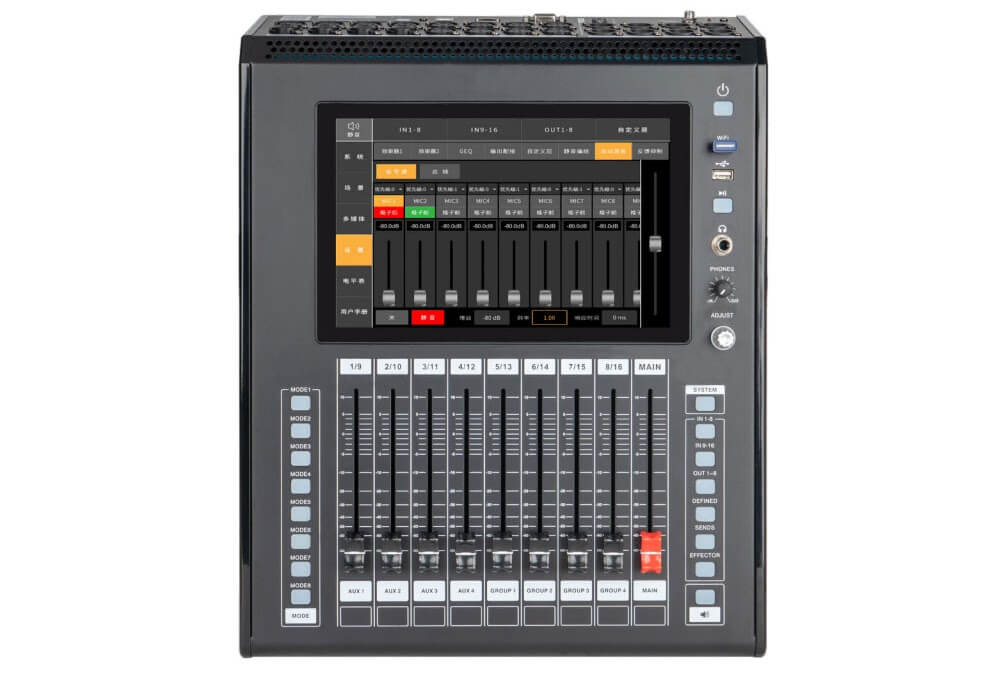

WDA-16

Features

• 10.1" capacitive touchscreen (1280×800);

• 9 motorized faders (100mm travel);

• Function encoder wheel (for selected function parameter adjustment);

• Digital input channels: Pan, 4-band EQ;

• 12 output channels: 8 analog; 1 stereo (selectable for USB recording/sound card); 1 stereo TRS headphone monitor; 1 optical output;

• 1 custom layer: Groups 8 channels (input/output/effect buses) on one display layer for quick operation;

• 4th-gen industrial SHARC processor: 32bit/168kHz ADC, 24bit/192kHz DAC;

• 20 input channels: 16 mic analog (4 COMBO); 1 stereo USB playback; 1 stereo USB sound card;

• Quick send (dedicated button): Sends input channels to multiple mix buses; send level adjustable to 0dB (saves setup time);

• 11 buses: 4 mono AUX; 4 stereo group; 2 stereo effect; 1 main;

• Built-in effects processor: 2 reverb + 1 chorus modules; preset (quickrecall) effects; library stores up to 100 sets;

• Analog input channels: Gain, noise gate, compressor, phase, 48V phantom power, pan, high-pass filter, 4-band EQ, 200ms delay;

• Auto-mix: Routable to any mix bus; 1-10 selectable priority levels;

• Feedback suppression: 16 input channels with independent on/off; 4 selectable levels (reduces on-site howling);

• Output channels: Low-pass filter, 4-band EQ, 200ms delay, 2×31-band GEQ insert (linked adjustment supported);

• 50-scene storage/recall: First 8 with dedicated quick-recall buttons;

• USB stereo playback/recording: Supports MP3/WAV/FLAC; recognizes Chinese track names;

• Built-in signal generator: White noise/sine wave/pink noise; sine wave (20Hz-20kHz selectable);

• LAN + external USB WiFi support: Web-based control (no OS restrictions);

• I/O channels: Chinese/English naming; 12 background color options;

• 1 mute group (one-key mute for multiple channels);

• Built-in user manual (all function settings viewable);

• USB firmware update: Copy file to USB drive (system quick recognition);

• RS-232 central control interface (3rd-party intelligent control);

• 2-level panel lock (password unlocking supported);

• Chinese/English display support.

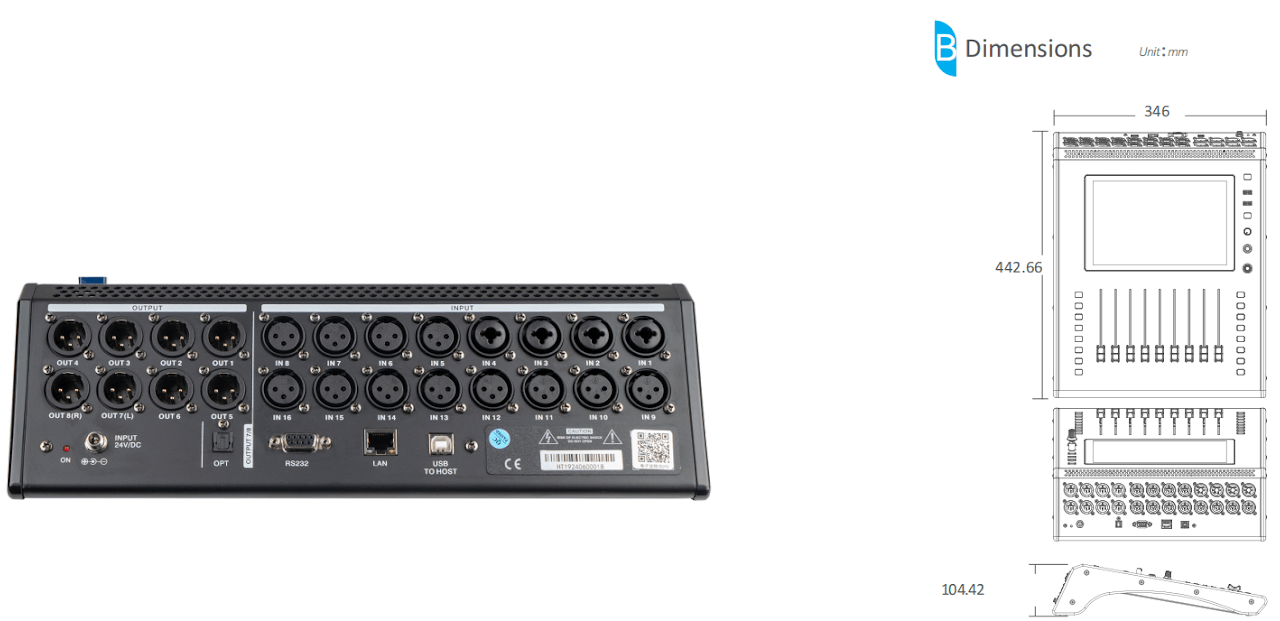

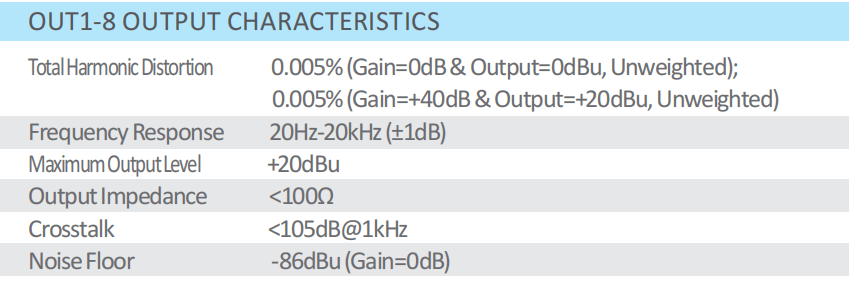

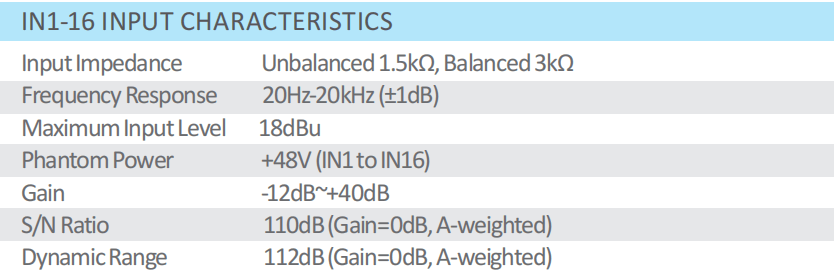

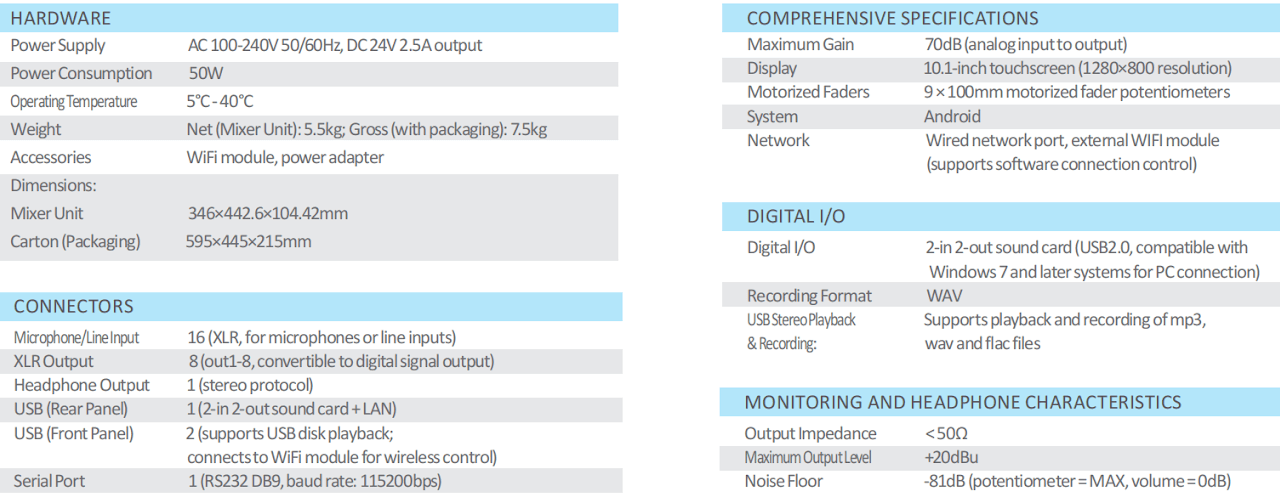

Technical Specifications
