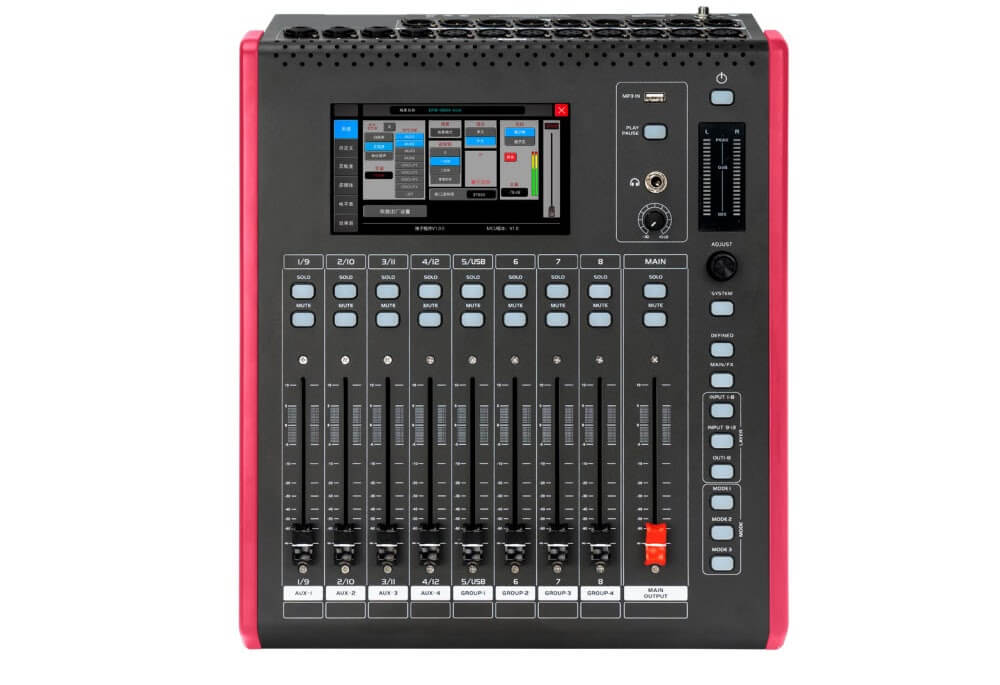

WDA-12

Features

• 1 x 7-inch touchscreen with 1024x600 resolution；

• 9 motorized 100mm-travel faders；

• 3 shortcut mode recall keys；

• 12 x mono balanced XLR MIC/line input channels；

• Supports Bluetooth/USB flash drive music playback；

• 10 x customizable balanced XLR output ports；

•  9 x Mix buses (8 AUX buses, 1 MAIN bus)；

•  2 x FX buses (effect send buses)；

• 4-band parametric EQ on all input and output channels；

• 1 x 31-band GEQ (Graphic Equalizer) on inputs；

• 1 x headphone monitoring output port；

• 1 x USB port (supports USB flash drive/Bluetooth music playback)；

• Panel lock function (prevents accidental operation)；

• 32 Scene Save & Recall presets.

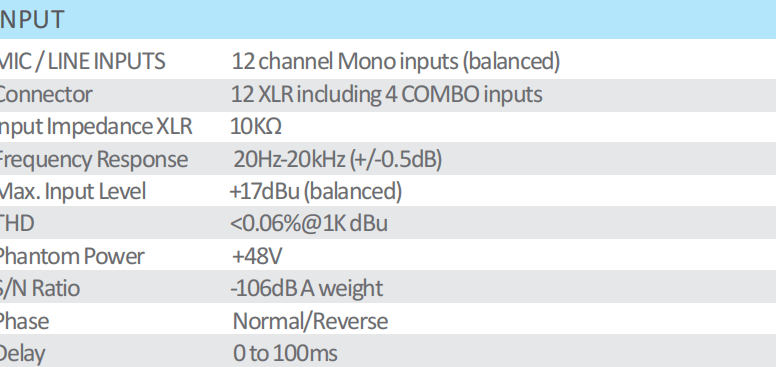

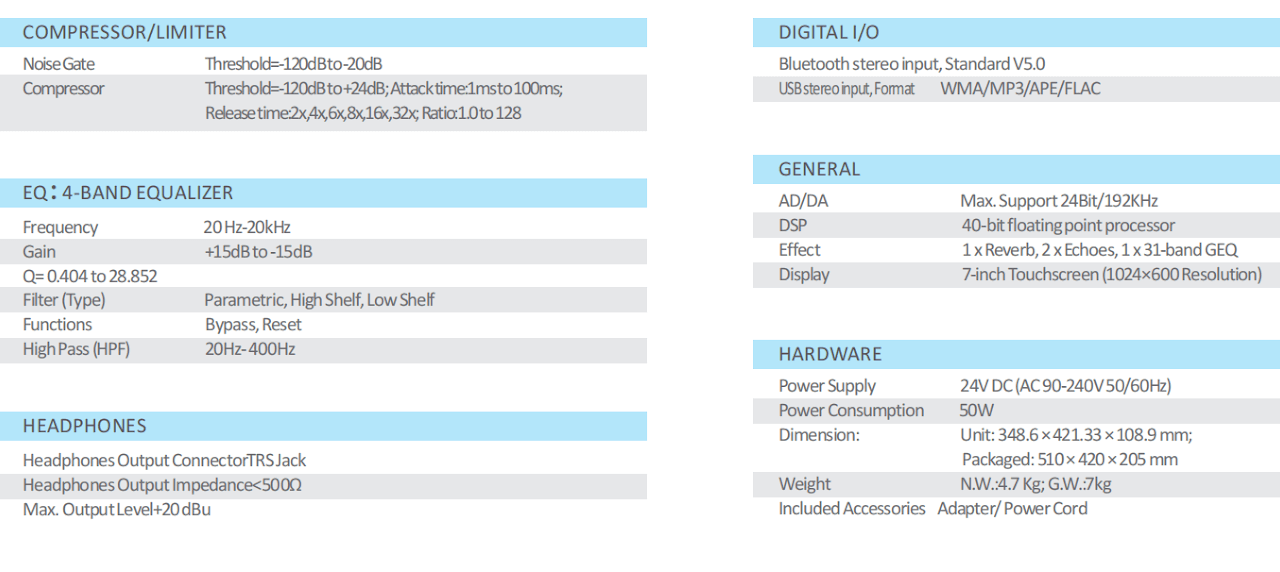

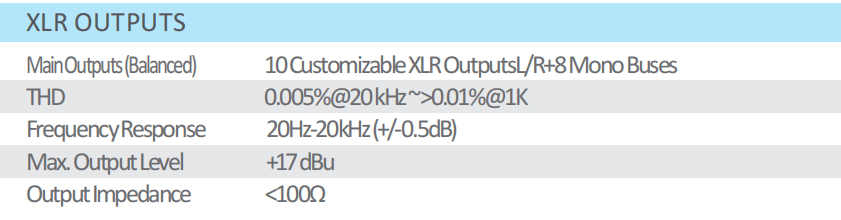

Technical Specifications
