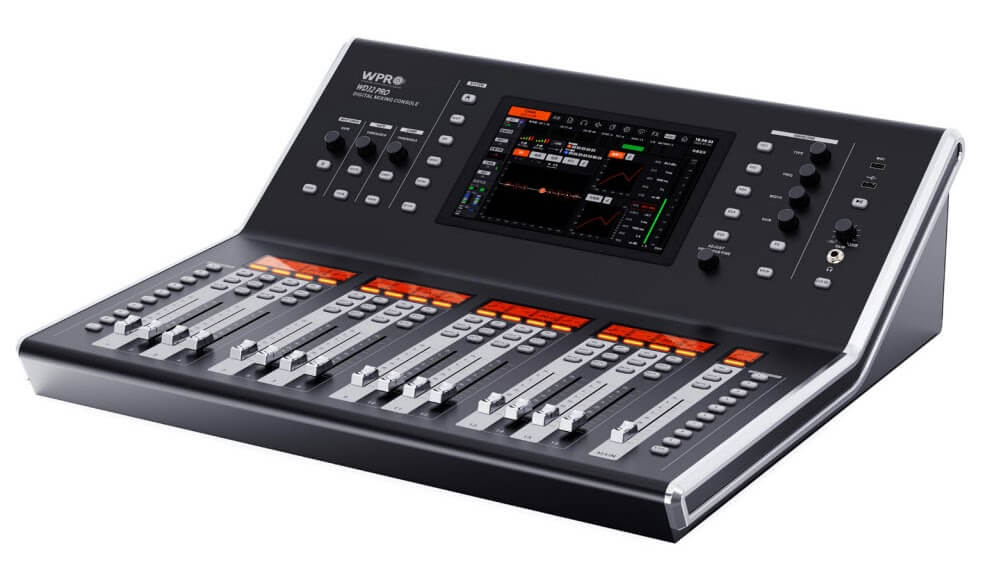

WD32PRO

Features

• 10.1" capacitive touchscreen, 1280x800 resolution；

• 17 × 100mm touch-sensitive motorized faders；

• 17 channel sub-screens, support channel name display；

• 36 physical inputs total: 32 XLR analog channels with preamps (8 COMBO ports included), 2-channel USB audio interface/stereo Bluetooth (selectable), 1 stereo USB playback；

• 22 physical outputs total: 16 XLR analog channels, 2-channel USB audio output, 1 stereo TRS headphone output, 1 USB recording；

• 44 mono + 2 stereo input buses; supports custom configuration of physical inputs to input buses；

• 22 mix buses: 14 mono, 4 effect, 2 mono MTRX matrix, and 1 stereo main bus;

• Input channel features: 48V phantom power, analog/digital gain, phase, 0–1000ms delay, pan/balance, volume, custom labels, 5-band EQ (parametric/high/low shelf/low-pass selectable), high-pass, noise gate, ducking, compressor, sidechain compression;

• Output channel features: 0–1000ms delay, pan/balance, volume, custom labels, 5-band EQ (parametric/high shelf selectable), high-pass/low-pass, 31-band GEQ, compressor;

• 4 effect buses: 14 selectable effects (echo, reverb, room/hall reverb, delay reverb, delay, phaser, overdrive, pitch shift, distortion, flanger, tremolo, chorus, limiter);

• 8 DCA groups, 6 mute groups;

• Custom channel layer function: 10 custom fader layers, with configurable settings for each layer;

• Built-in real-time spectrum RTA function

• Expandable via optional cards: 16X16 audio interface, 16X16 AES67 card, 16X16 HMLINK;

• Built-in 2X2 audio interface; supports 2-track audio recording/playback;100 presets for scenes, parametric EQ, effects, noise gates, compressors, GEQ; with save/recall functions;

• Supports LAN + external USB Wi-Fi module connection; web-based software control;

• Chinese/English language switching; APP auto-adapts to system language;

• 2-level panel lock to prevent misoperation.

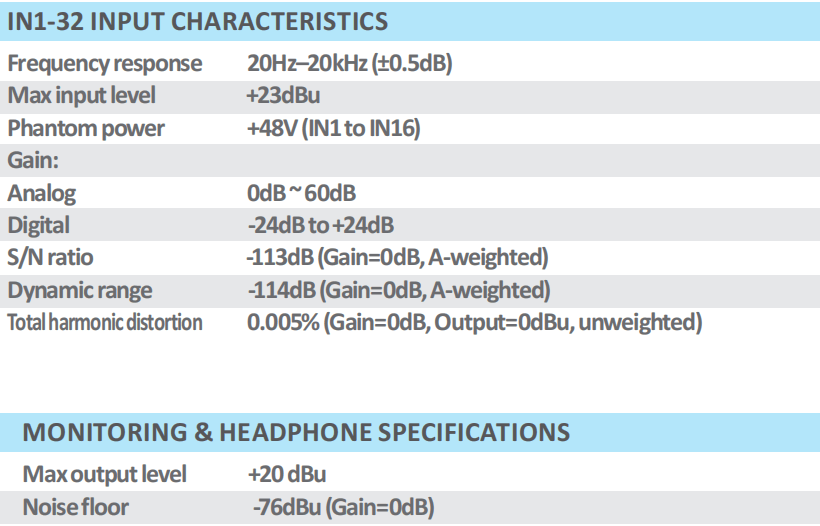

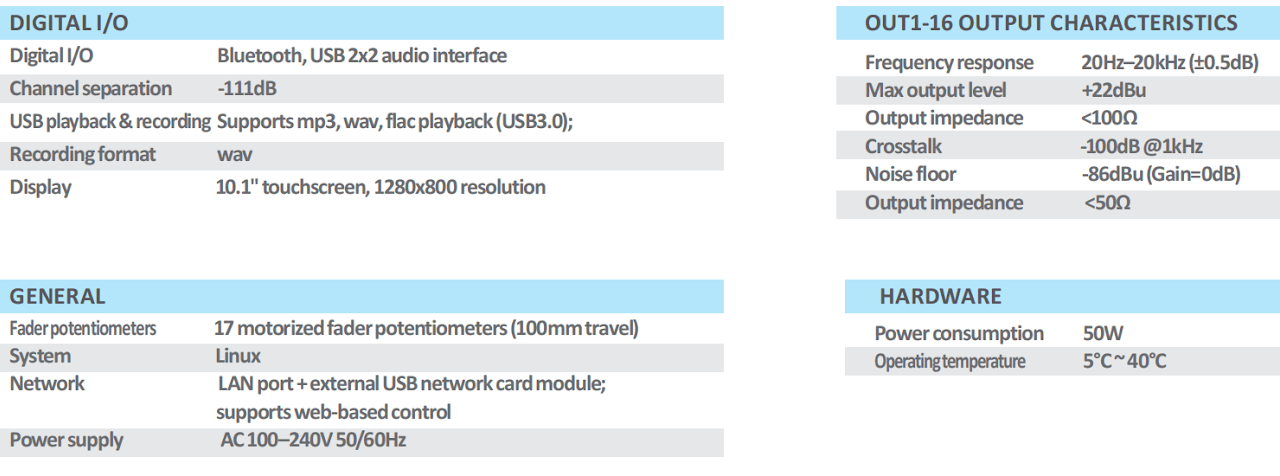

Technical Specifications
