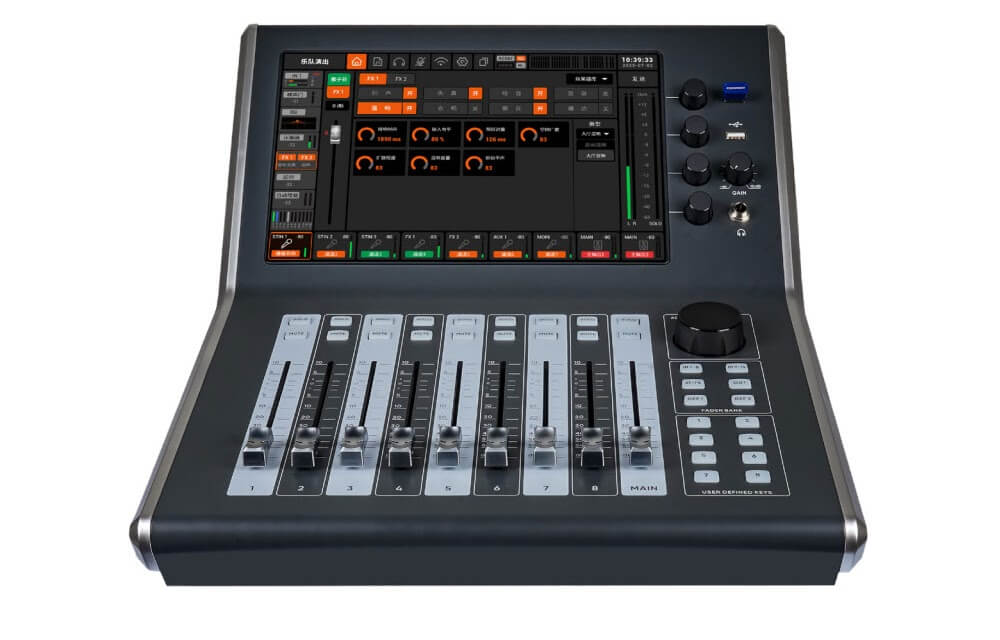

WD16PRO

Features

• 10.1" capacitive touchscreen (1280×800 resolution);

• 9×100mm touch-sensing travel faders;

• Built-in feedback suppression (AUX1/AUX2, 3 adjustable detection speeds);

• 16 input buses with automatic gain;

• Integrated 2×2 sound card (2-track playback support);

• 4 DCA groups, 6 mute groups;

• Input Channels: 48V phantom power, analog/digital gain, phase

• adjustment, 0–1000ms delay, pan/balance, volume, custom labels,

• 4-band parametric EQ (options: parametric/hi-fi/low-shelf/high-pass), high-pass filter, noise gate, compressor, automatic gain/delay;

• Output Channels: 0–1000ms delay, pan/balance, volume, custom labels, 4-band parametric EQ (options: parametric/hi-fi), high-pass/low-pass

• filters, 31-band GEQ, compressor, feedback suppression (AUX1/AUX2);

• Physical Inputs (20 total): 16 XLR mic inputs (4 COMBO), 2-channel USB sound card/Bluetooth (selectable), stereo USB flash drive playback;

• Physical Outputs (14 total): 8 XLR analog outputs, 2-channel USB sound card output, stereo TRS headphone monitoring output, USB drive recording;

• 16 mono + 3 stereo input buses (physical port-to-bus user-defined configuration);

• 11 mixing buses: 6 mono, 2 effect, 2 mono return, 1 stereo main output;

• 2 effect buses with 8 effects (reverb/echo/chorus/wah/tremolo/distortion/pitch shift/flange), free combination supported;

• Digital expansion: 4 optional 16×16 AES67 / 16×16 sound card / HMLNK ports (16×16 Dante expansion for original accessories);

• LAN/external USB WiFi connection, WEB browser control supported;

• Real-time frequency analysis (RTA) function;

• 100 scenes & 100 effect libraries (save/recall supported);

• Third-party central control via RS232 & Ethernet TCP/IP;

• Chinese/English language switching (APP auto-adapts to system language);

• 2-level panel lock (anti-misoperation).

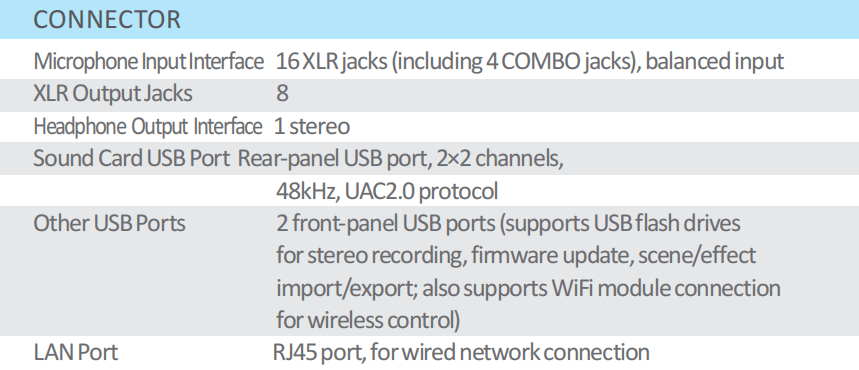

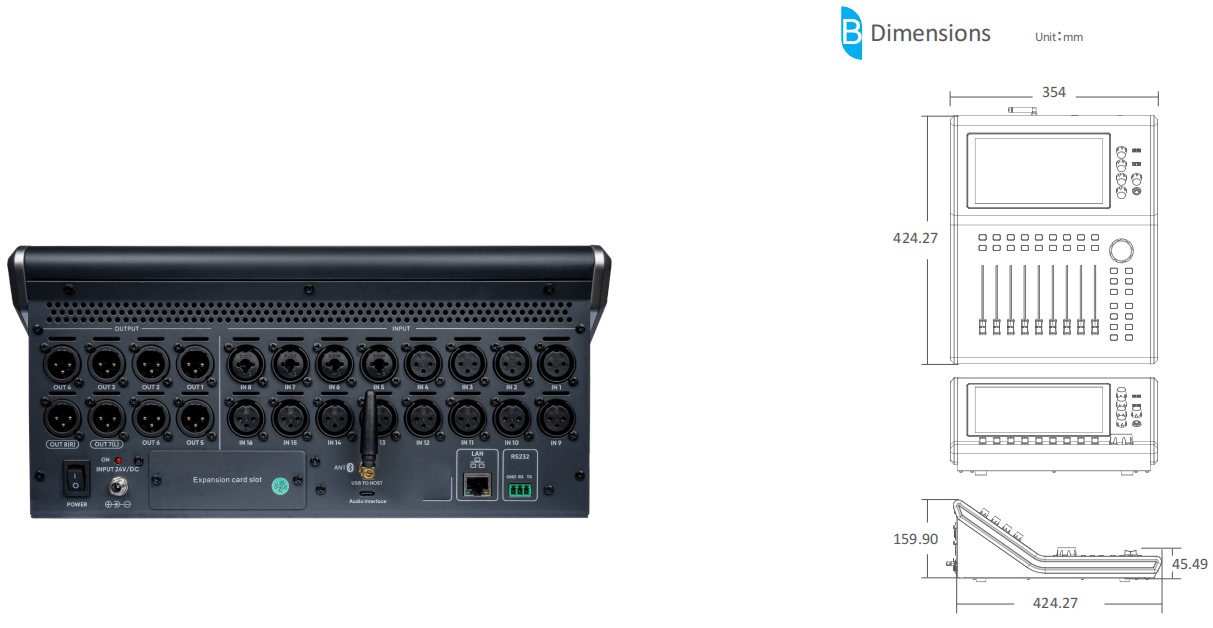

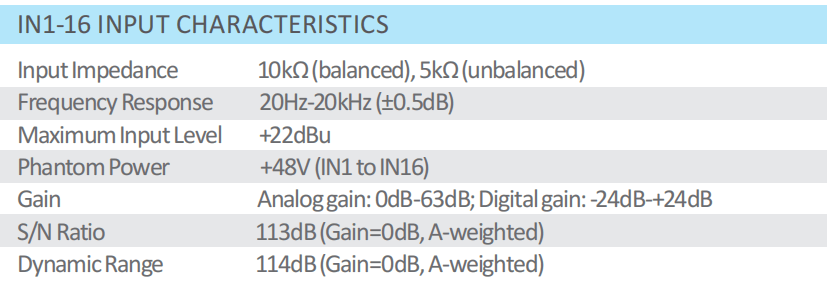

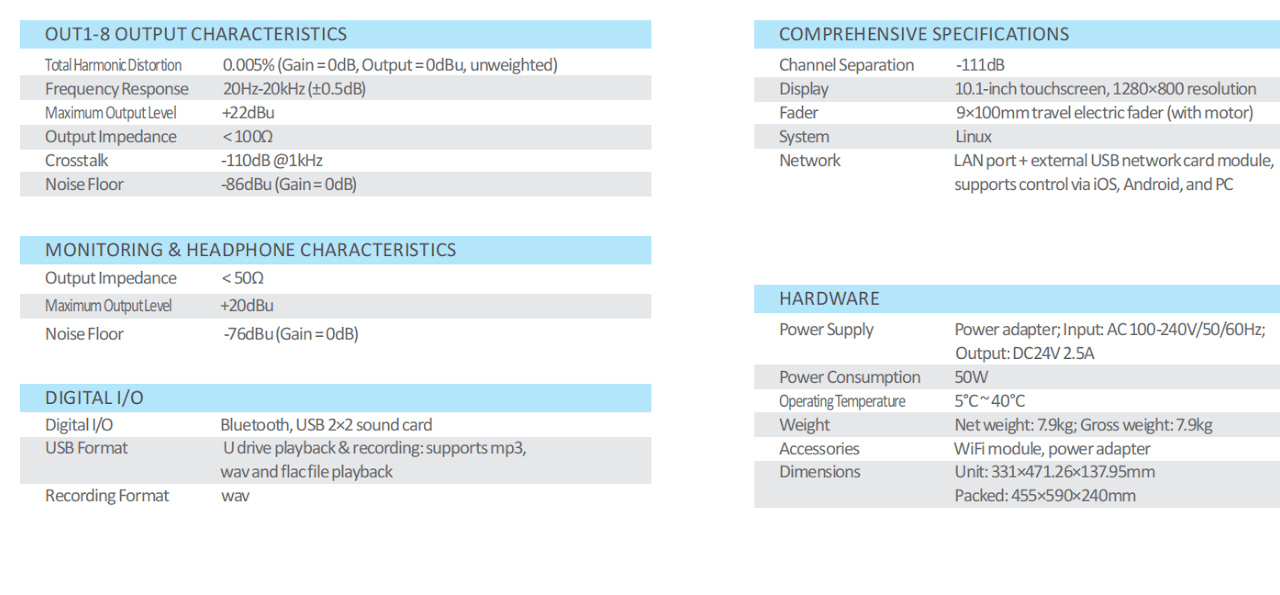

Technical Specifications
